Vehicle Detail
Toyota Hilux Diesel
- Technical Specifications
- General Information
- Vehicle Location
| Interior and Exterior Features: | |
| Power Door Lock | Interior Color Black |
| Power Windows | Fabric Seats |
| Power Steering | With Global Rubber Mat |
| Steering Switch With Audio/Telephone Controller | Antilock Brake System (ABS) |
| Side Steps | 80 L |
| Without Multi Information Display | Roof Antenna |
| With Front Air Conditioner | Outside Rear Mirror With Black Electric + Side Turn |
| With Digital Clock | Door Outside Handle With Black Color |
| Air Bag System Driver + Passenger, Knee For Driver | Tailgate Panel For J Deck |
| Major Dimensions & Vehicle Weights: | |
| Overall | Length (mm): 5325 |
|---|---|
| Width (mm): 1855 | |
| Height (mm): 1815 | |
| Wheelbase (mm) | 3085 |
| Tread | Front (mm): 1510 |
| Rear (mm): 1520 | |
| Overhang | Front (mm): 990 |
| Rear (mm): 1255 | |
| Min. Running Ground Clearance (mm) | 310 |
| Angle of Approach (degrees) | 31 |
| Angle of Departure (degrees) | 27 |
| Interior | Length (mm): 1697 |
| Width (mm): 1480 | |
| Height (mm): 1170 | |
| Seating Capacity (persons) | 5 |
| Gross Vehicle Weight | Total (kg): 2910 |
| Curb Weight | Total Min. Options (kg):2000 |
| Total Max. Options (kg): 2060 | |
| Towing Capacity | With Brake (kg): 1500 |
| Without Brake (kg): 750 | |
| Fuel Tank Capacity | 80 Ltr. |

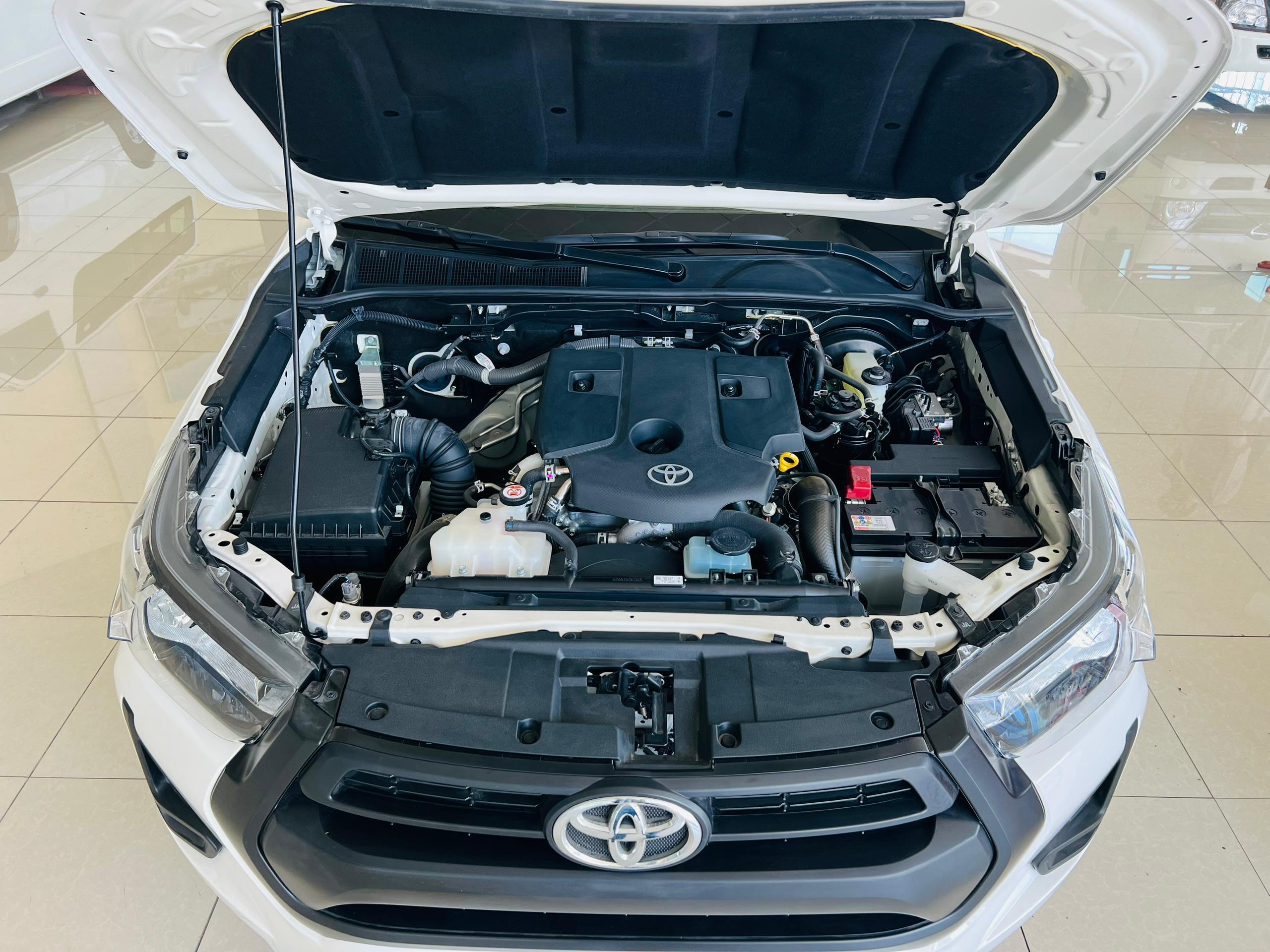

| Engine: | |
| Engine Model Code: | 2GD-FTV (High): |
| No. of Cylinders: | 4 cylinders: |
| Cylinder Arrangement: | IN LINE: |
| Bore (mm): | 92: |
| Stroke (mm): | 90: |
| Displacement (cm3): | 2393: |
| Compression Ratio: | 15.6: |
| Fuel System: | Fuel Injection : |
| Fuel Type: | DIESEL: |
| Recommended Cetane Rating: | 48 OR MORE (CETANE): |
| Engine: | Engine: |
| Max. Output | (KW): 110 |
| (RPM): 3400 | |
| Max, Torque | (N·m): 400 |
| (RPM Min.): 1600 | |
| (RPM Max.): 2000 | |
| Brake Type | Front : VINTILATED DISC BRAKE WITH FIXED CALIPER 4-CYLINDER |
| Rear : LEADING –TRAILING DRUM BRAKE | |
| Brake Size | Front Diameter(mm): 319 |
| Rear Diameter (mm): 295 | |
| Parking Brake | Type of Control - FLOOR LEVER TYPE |
| Suspensions | |
| Suspension Type | Front: DOUBLE WISHBONE |
| Rear: LEAF SPRING RIGID AXLE | |
| Steering System | |
| Steering Gear Type | RACK & PINION |
| Power Steering | HYDRAULIC |
| Steering Overall Ratio | 17.7 |
| Steering Gear Ratio (w/0 VGRS, w/ VGRS) | . |
| Lock to Lock | 3.3 |
| Tire and Wheels | |
| Sizes | 265/65R17 ALL TERRAIN STEEL GENERAL BLACK |
| Spare Tires | GROUND TIRE (STEEL –WHEEL) |
Hilux 2024/25
The Toyota Hilux excels with its pickup versatility and commanding road presence. Its strong pulling power and robust build ensure control while off-roading. Featuring a spacious five-seater cabin, it combines a reasonably feature-loaded interior with an indestructible build quality.
